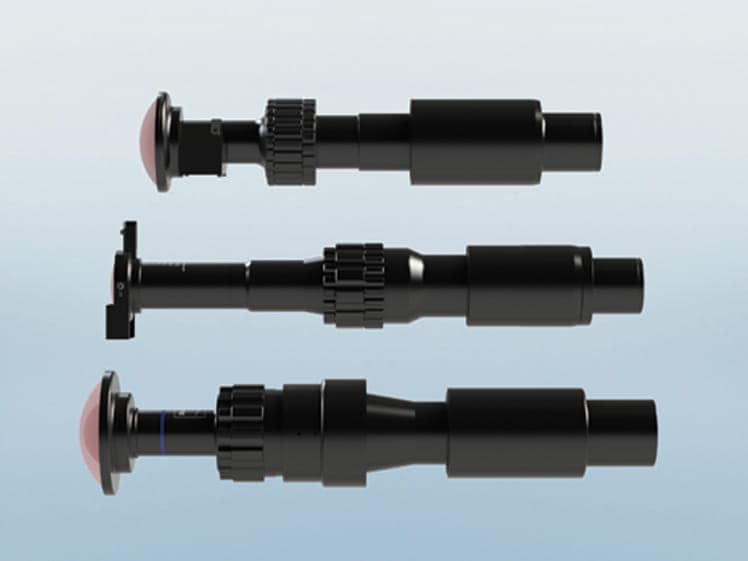

CoastalOpt® 投影対物レンズ：エンターテインメント産業用のユニークなプロジェクト
Jenoptik は世界最大のテーマパークようにカスタマイズ品の2Dおよび3D投影対物レンズを設計製造しております。
Jenoptik のお客様には有名な ウォルト・ディズニー・ワールド・リゾートのみならず、全世界のレジャーパークも含まれます。例えば、アメリカ、台湾、アラブ首長国連邦、日本、中国でのプロジェクトを手掛けております。当社の専門家はお客様のショーや3Dプロダクションに向けたユニークな投影対物レンズを喜んで開発いたします。
特長
- 国際的:世界中のテーマパークで使用されています
- カスタム設計:お客様の要件に適合するべく、それぞれ別途開発されています
- 高汎用性:当社ではデジタル顧客用デスクトップから映画館の投影機までにわたる広範囲のアプリケーションに向けた対物レンズを製造しています。
アプリケーション分野
- エンターテインメント産業:3D映画館およびシミュレーター用広角対物レンズ
JENOPTIK - World Class Entertainment - projection lens systems
Jenoptik Dome Theater
In-house testing and demonstration of Jenoptik projection lenses

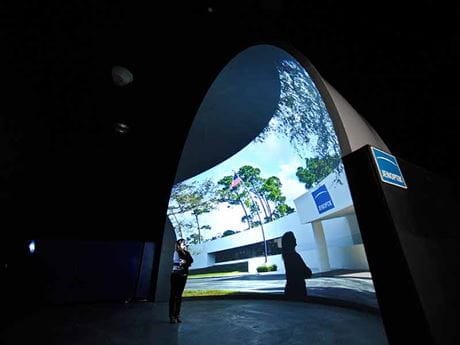

The Jenoptik Dome Theater enables testing and demonstrating new laser projection lenses for digital cinemas, planetariums and theme park attractions in-house at Jenoptik site.

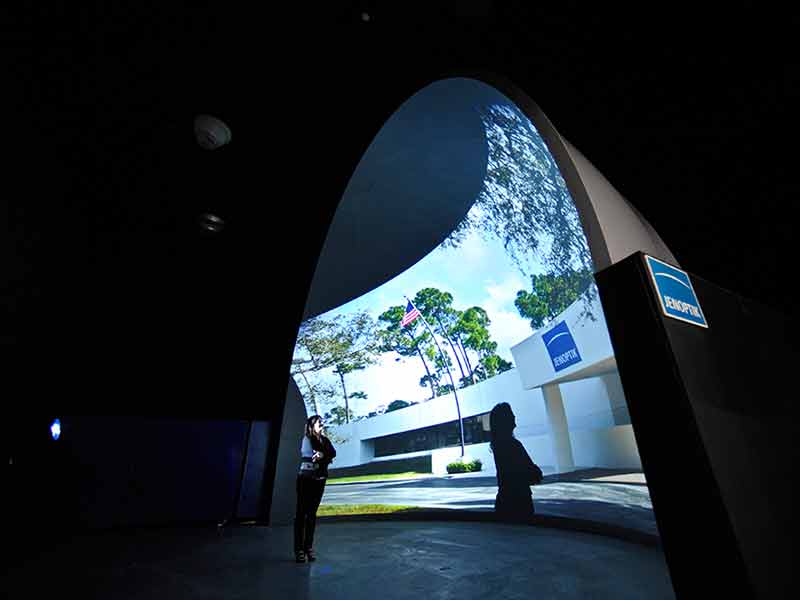

The screen is 24 feet in diameter with 12 feet dome radius. The hemispherical screen is elevated five feet abovethe audience which is perfect for testing digital planetarium lenses. The screen is coated with a proprietary high performance surface treatment to match our customer’s preferred 3D projection screens.
The Jenoptik Theater also has a 30 x 16 feet flat sceen for testing digital cinema lenses especially produced for flat sceens.
Projection Lenses - Suitable for following projectors
Suitable for following projectors:
- Christie D4KLH60
- Christie D4K3560
- Christie Roadie HD+35K
- Christie Boxer 4K30
- Christie Mirage 304K
- Barco DP4K-32B
- Barco HDQ-4K35
- DP INSIGHT 4K Quad
- DP Insight Laser 4K
- DP Insight Dual Laser 4K
テクニカルデータ

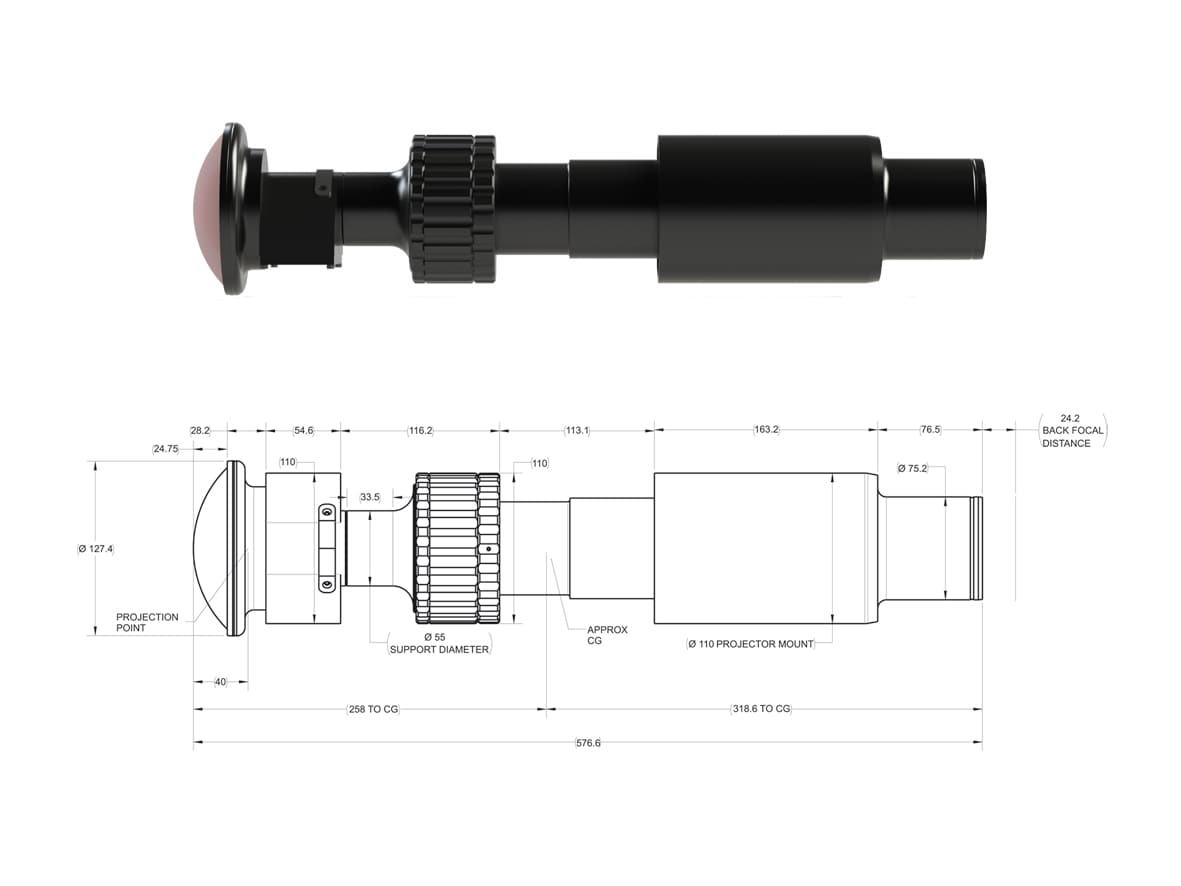

F-Theta High Power Projection Lenses
Planetarium and Giant Screen Solutions | JOS4K-1

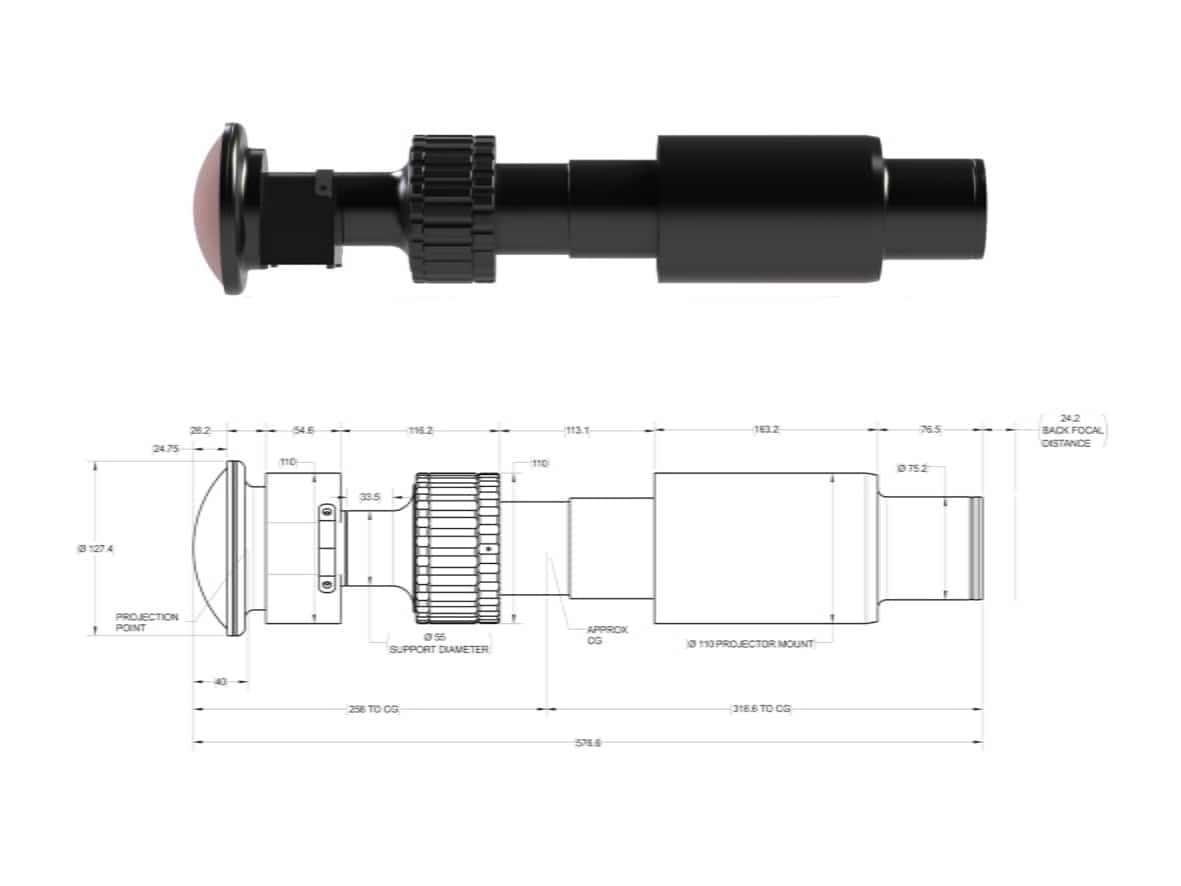

| Parameters | |
| Horizontal field of view: | 180° |
| Vertical field of view: | 125° |
| Diagonal field of view: | - |
| Effective focal length: | 7.5 mm |
| f#: | 2.85 |
| MTF @ 66 lp/mm: | 0.68 |
| Lateral color B-R: | < 3.5 µm |
| F-Theta distortion: | < 0.2 % |
| Transmission: | > 77 % |
| Digital light procession (DLP): | 1.38“ 3 Chip |
| Resolution: | 4096 x 2160 pixel |
| DLP dimension: | 30.96 mm x 16.33 mm |
| Pixel pitch: | 7.56 µm |
| Max lumens: | 32 k |
| Order Number: | JOS4K-1 |
JOS4K-2 - Technical Data
F-Theta High Power Projection Lenses
Planetarium and Giant Screen Solutions | JOS4K-2

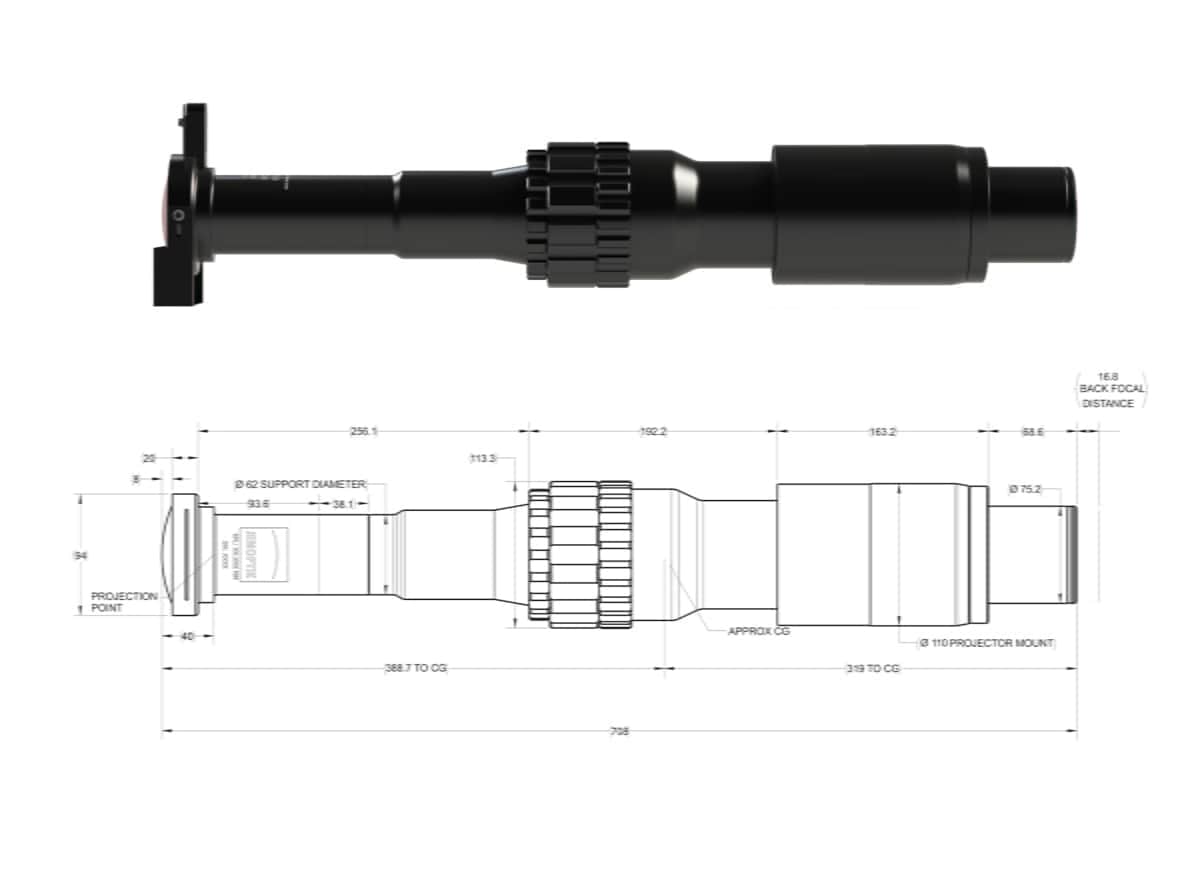

| Parameters | |
| Horizontal field of view: | 101° |
| Vertical field of view: | 53° |
| Diagonal field of view: | 114° |
| Effective focal length: | 17.5 mm |
| f#: | 2.85 |
| MTF @ 66 lp/mm: | 0.78 |
| Lateral color B-R: | < 1 µm |
| F-Theta distortion: | < 0.8 % |
| Transmission: | > 77 % |
| Digital light procession (DLP): | 1.38“ 3 Chip |
| Resolution: | 4096 x 2160 pixel |
| DLP dimension: | 30.96 mm x 16.33 mm |
| Pixel pitch: | 7.56 µm |
| Max lumens: | 45 k |
| Order Number: | JOS4K-2 |
JOS4K-4 - Technical Data
F-Theta High Power Projection Lenses
Planetarium and Giant Screen Solutions | JOS4K-4

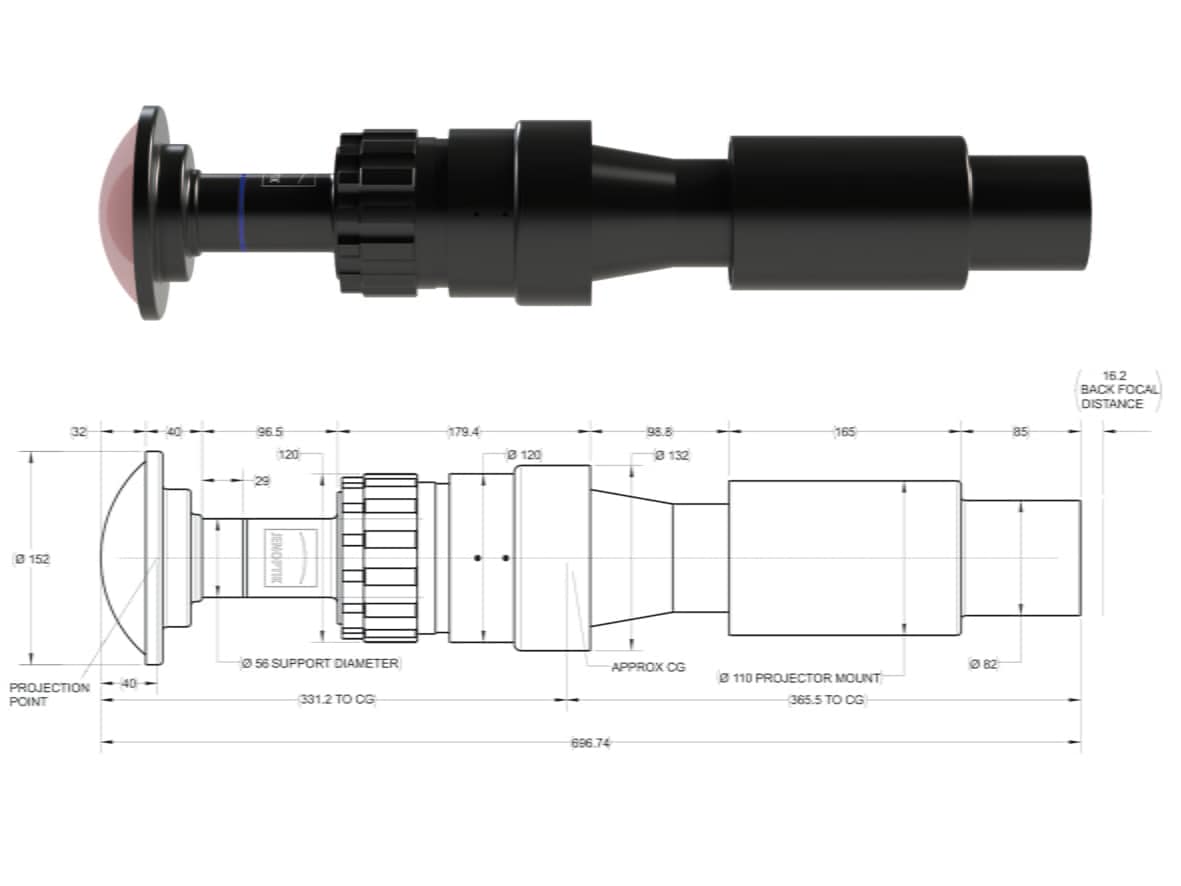

| Parameters | |
| Horizontal field of view: | 170° |
| Vertical field of view: | 90° |
| Diagonal field of view: | 192° |
| Effective focal length: | 10.35 mm |
| f#: | 2.85 |
| MTF @ 66 lp/mm: | 0.55 |
| Lateral color B-R: | < 3.5 µm |
| F-Theta distortion: | < 1 % |
| Transmission: | > 85 % |
| Digital light procession (DLP): | 1.38“ 3 Chip |
| Resolution: | 4096 x 2160 pixel |
| DLP dimension: | 30.96 mm x 16.33 mm |
| Pixel pitch: | 7.56 µm |
| Max lumens: | 60k |
| Order Number: | JOS4K-4 |
JOS4K-5 - Technical Data
F-Theta High Power Projection Lenses
Planetarium and Giant Screen Solutions | JOS4K-5

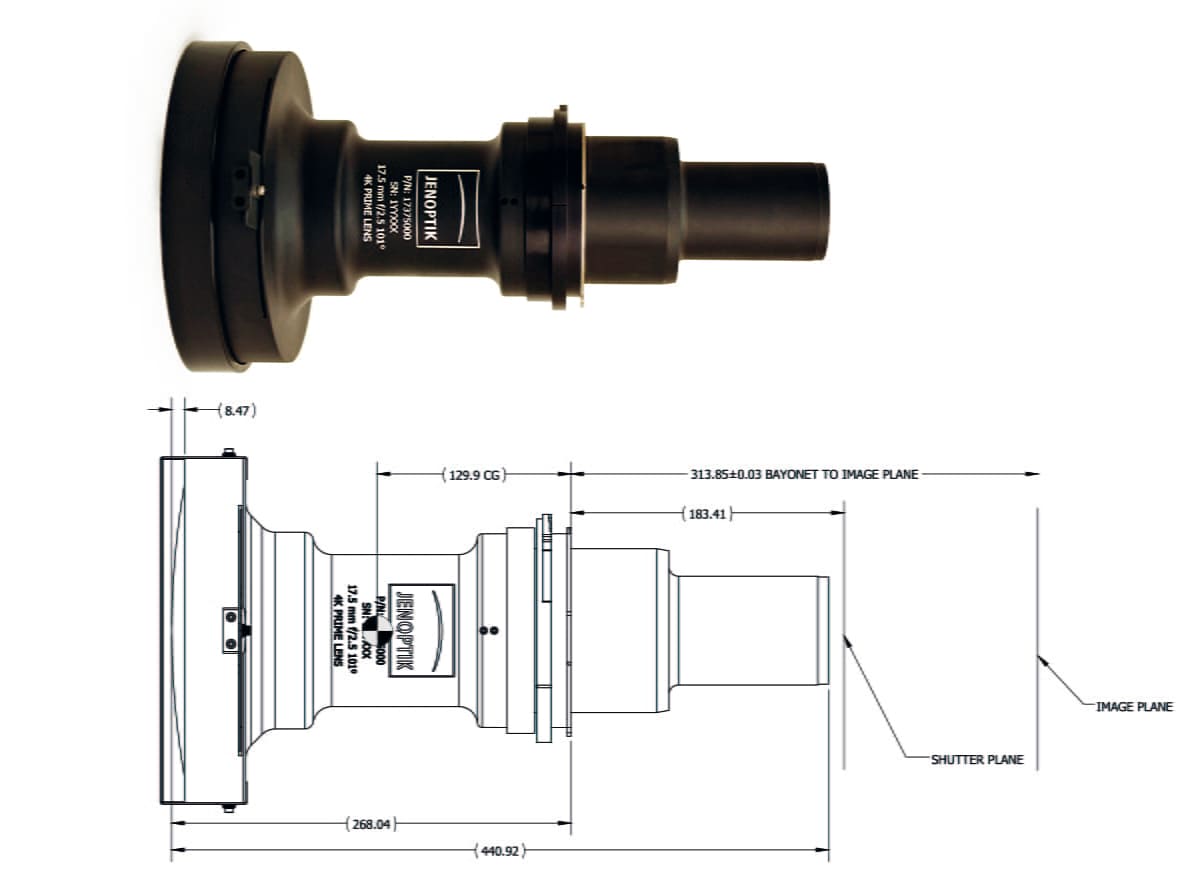

| Parameters | |
| Horizontal field of view: | 101° |
| Vertical field of view: | 53° |
| Diagonal field of view: | 114° |
| Effective focal length: | 17.54 mm |
| f#: | 2.5 |
| MTF @ 66 lp/mm: | 0.8 |
| Lateral color B-R: | < 5.0 µm |
| F-Theta distortion: | < 0.6 % |
| Transmission: | 80 % |
| Digital light procession (DLP): | 1.38“ 3 Chip |
| Resolution: | 4096 x 2160 pixel |
| DLP dimension: | 30.96 mm x 16.33 mm |
| Pixel pitch: | 7.56 µm |
| Max lumens: | 45k |
| Order Number: | JOS4K-5 |

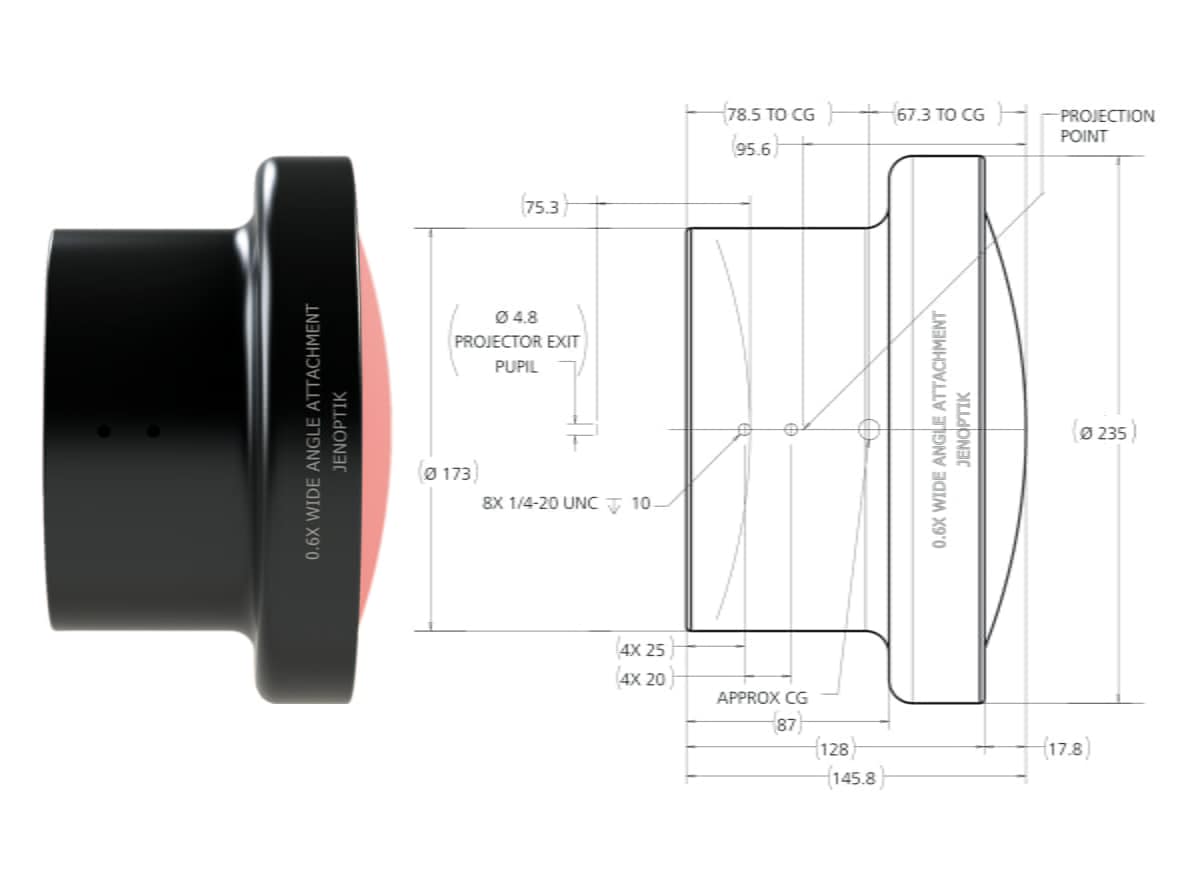

0.6x Lens Attachment - Technical Datas
0.6x Lens Attachment
Wide Angle Conversion Lens
Jenoptik’s portfolio of projection lenses is complemented by the 0.6x lens attachment. The wide angle conversion lens which is optionally offered works in conjunction with the projector prime lens.
It allows to increase the image size while maintaining a static projection distance. Reverse, it also facilitates to decrease projection throw distance while maintaining the image size.
Suitable for following projector: SONY VPL-GTZ 270/280 w/Lens VPLL-Z7008 (EFL 13.46 mm - 18 mm)
| Parameters | |
| Effective focal length: | - 2201 mm |
| MTF @ 66 lp/mm: | Depends on zoom postion of prime lens |
| Transmission: | > 92 % |
| Magnification | 0.6x |
| Order Number: | JOSI4K-5CL |
